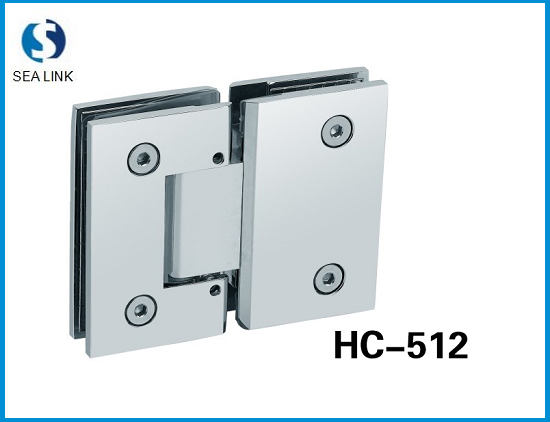

Chrome 180 Degree Glass to Glass Hinge With 5 Degree Pin Preset

• Pre-Set Model Options: 5 Degree Pre-Set for a tighter door closure towards the shower interior.
• Self-Centering Design: Equipped with a Reversible 5 Degree Pivot Pin.
• Warranty: Includes a 3-year warranty.
• Glass Compatibility: Designed for use with monolithic tempered glass.

The Junior Geneva Hinge offers a compact yet elegant European design, compatible with 1/4" (6 mm) to 5/16" (8 mm) thick glass. Constructed from solid brass, it comes in up to 12 stock finishes. Available in three wall mount styles and 90°, 135°, and 180° glass-to-glass options, the Junior Geneva is self-centering and includes a reversible pivot pin for an optional 5-degree tighter closure.

• Standard Reversible Pivot Pin: Allows switching between 90-degree and 85-degree closure by rotating (not flipping) the pin.
• Custom Pivot Pins: Available to accommodate non-standard angles (up to 45 degrees).

Specifications:

• Glass Thickness: Suitable for 1/4" to 5/16" tempered safety glass.
• Load Capacity: Supports doors up to 62 lbs (28 kg) with two hinges and 92 lbs (42 kg) with three hinges.
• Swing Range: 90° in and 90° out.
• Self-Centering: Automatically centers when within 15° of closed position.
• Construction: Made from solid brass.
• Installation Requirements: Cut-out required; includes gaskets, screws, and glass fabrication dimensions.

Intended Use: Ideal for residential or hotel shower doors. Approval required for alternative applications—contact the Shower Door Technical Sales Department for further information.
