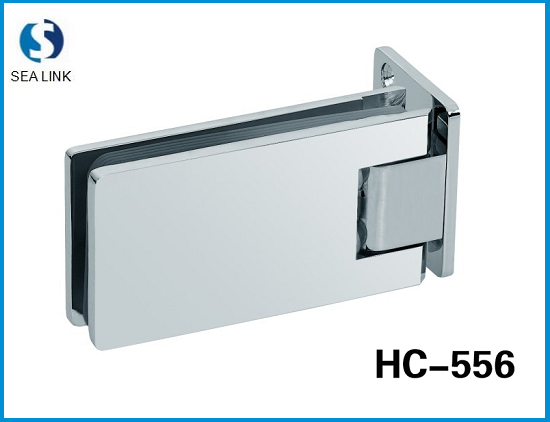

Chrome Wall Mount Offset Back Plate Hinge HC-556

• Enhanced Clamping Surface: The Grande Hinge features a large clamping area for added support on frameless shower doors.
• Attractive Design: Beveled edges accentuate its robust, rectangular form, while the Offset Back Plate Wall Mount provides a clean, seamless exterior.
• Flexible Mounting: Mounting options include the top and bottom corners of the door or any position in between for increased glass exposure.

Specifications:

• Glass Thickness: Compatible with 5/16" to 3/8" tempered safety glass (8–10 mm).
• Load Capacity:
  • Two Hinges: Supports up to 90 lbs (41 kg); max door width 31" (787 mm).
  • Three Hinges: Supports up to 134 lbs (61 kg); max door width 34" (864 mm).
• Swing Range: 90° in and 90° out.
• Precise Closure: Closes precisely at 0°.
• Construction: Made from solid brass for lasting durability.
• Installation Requirements: Requires cut-out and hole in glass. Includes gaskets, screws, and glass fabrication dimensions.

Ideal for frameless shower door installations, the Grande Hinge offers solid, long-lasting support with a polished, elegant appearance.
